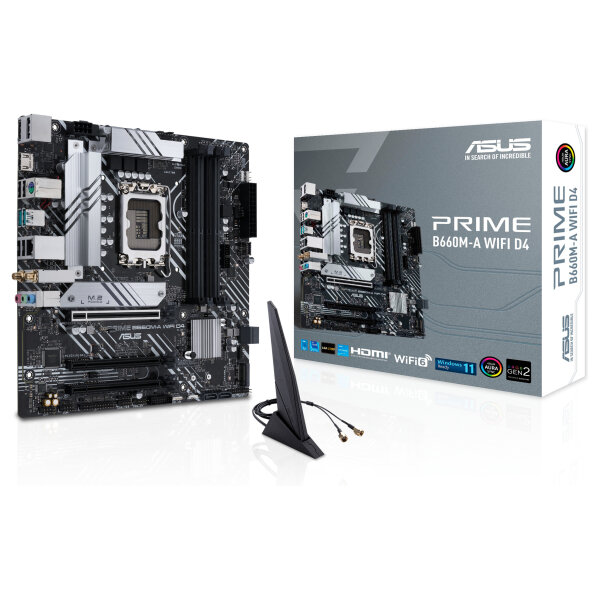

ASUS PRIME B660M-A WIFI D4. Prozessorhersteller: Intel, Prozessorsockel: LGA 1700, Kompatible Prozessoren: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Unterstützte Arbeitsspeicher: DDR4-SDRAM, RAM-Speicher maximal: 128 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA, Unterstützte Speicherlaufwerke: HDD & SSD, RAID Level: 0, 1, 5, 10. Ethernet Schnittstellen Typ: Gigabit Ethernet, Top WLAN-Standard: Wi-Fi 6 (802.11ax), WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Komponente für: PC, Motherboardformfaktor: micro ATX, Motherboard Chipsatz Familie: Intel
Prozessor
Prozessorhersteller: Intel
Prozessorsockel: LGA 1700
Kompatible Prozessoren: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
Maximale Anzahl an SMP-Prozessoren: 1
Speicher
Unterstützte Arbeitsspeicher: DDR4-SDRAM
Anzahl der Speichersteckplätze: 4
Arbeitsspeicher Typ: DIMM
Speicherkanäle: Zweikanalig
ECC-Kompatibilität: Nicht-ECC
Unterstützte Arbeitsspeichergeschwindigkeit: 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4400,4600,4800,5000,5333 MHz
RAM-Speicher maximal: 128 GB
Unbuffered Speicher: Ja
Speicher-Controller
Unterstützte Speicherlaufwerke: HDD & SSD
Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA
RAID Level: 0, 1, 5, 10
Grafik
Anzahl der Display unterstützt: 3
Interne E/A-Anschlüsse
Anzahl USB 2.0 Schnittstellen: 3
USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: 3
SATA III Anschlüsse: 4
S/PDIF aus Stecker: Ja
Front Panel Audiostecker: Ja
ATX Stromstecker (24-pol.): Ja
CPU Ventilatorstecker: Ja
Zahl der Chassisventilatorstecker: 2
EPS Stromstecker (8-pin): Ja
Zahl der COM Stecker: 1
12-V-Stromanschluss: Ja
RGB-LED-Stiftleiste: Ja
E/A-Anschlüsse auf der Rückseite
Anzahl USB 2.0 Anschlüsse: 4
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: 2
Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
Anzahl PS/2 Anschlüsse: 1
Anzahl HDMI-Anschlüsse: 2
HDMI-Version: 2.1
Anzahl DisplayPort Anschlüsse: 1
DisplayPorts-Version: 1.4
Kopfhörerausgänge: 1
Mikrofon-Eingang: Ja
Netzwerk
Ethernet/LAN: Ja
Ethernet Schnittstellen Typ: Gigabit Ethernet
WLAN: Ja
Top WLAN-Standard: Wi-Fi 6 (802.11ax)
WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth: Ja
Bluetooth-Version: 5.2
Merkmale
Motherboard Chipsatz: Intel B660
Audio-Chip: Realtek ALC897
Audio Kanäle: 7.1 Kanäle
Komponente für: PC
Motherboardformfaktor: micro ATX
Motherboard Chipsatz Familie: Intel
Unterstützt Windows-Betriebssysteme: Windows 10 x64, Windows 11 x64
Erweiterungssteckplätze
PCI-Express x16 (Gen 3.x)-Anschlüsse: 2
PCI Express x16-Steckplätze (Gen 4.x): 1
Anzahl der M.2 (M)-Steckplätze: 2
BIOS
BIOS-Typ: UEFI AMI
BIOS-Speichergröße: 128 Mbit
Logistikdaten
Warentarifnummer (HS): 84733020
Gewicht und Abmessungen
Breite: 244 mm
Tiefe: 244 mm
Höhe: 60 mm
Lieferumfang
Mitgelieferte Kabel: SATA
Treiber enthalten: Ja
Sonstige Funktionen
Gewicht: 819 g
