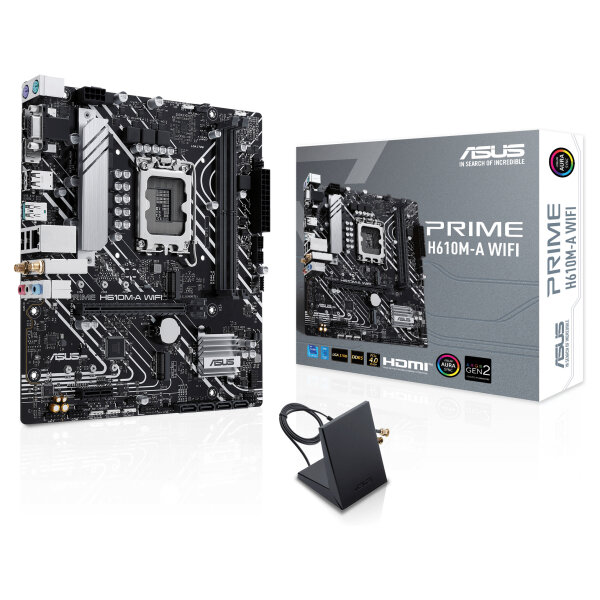

ASUS PRIME H610M-A WIFI. Prozessorhersteller: Intel, Prozessorsockel: LGA 1700, Kompatible Prozessoren: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Unterstützte Arbeitsspeicher: DDR5-SDRAM, RAM-Speicher maximal: 96 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, Unterstützte Speicherlaufwerke: HDD & SSD. Ethernet Schnittstellen Typ: Gigabit Ethernet, Top WLAN-Standard: Wi-Fi 5 (802.11ac), WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Komponente für: PC, Motherboardformfaktor: micro ATX, Motherboard Chipsatz Familie: Intel
Prozessor
Prozessorhersteller: Intel
Prozessorsockel: LGA 1700
Kompatible Prozessoren: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Unterstützte Prozessorsteckplätze: LGA 1700
Speicher
Unterstützte Arbeitsspeicher: DDR5-SDRAM
Anzahl der Speichersteckplätze: 2
Arbeitsspeicher Typ: DIMM
Speicherkanäle: Zweikanalig
ECC-Kompatibilität: Nicht-ECC
Unterstützte Arbeitsspeichergeschwindigkeit: 4800,5000,5200,5400,5600 MHz
Unterstützte Speichertaktrate (max.): 5600 MHz
RAM-Speicher maximal: 96 GB
Unbuffered Speicher: Ja
Speicher-Controller
Unterstützte Speicherlaufwerke: HDD & SSD
Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III
Maximale unterstützte Anzahl der HDD: 4
Anzahl der unterstützten Speicherlaufwerke: 6
Grafik
Parallele Verarbeitungstechnologie: Nicht unterstützt
Interne E/A-Anschlüsse
Anzahl USB 2.0 Schnittstellen: 2
USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: 2
SATA III Anschlüsse: 4
S/PDIF aus Stecker: Ja
Audio-Anschluss: Ja
Front Panel Audiostecker: Ja
ATX Stromstecker (24-pol.): Ja
CPU Ventilatorstecker: Ja
Zahl der Chassisventilatorstecker: 2
EPS Stromstecker (8-pin): Ja
Zahl der COM Stecker: 1
TPM-Anschluss: Ja
12-V-Stromanschluss: Ja
RGB-LED-Stiftleiste: Ja
E/A-Anschlüsse auf der Rückseite
Anzahl USB 2.0 Anschlüsse: 4
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 1
Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
Anzahl PS/2 Anschlüsse: 2
Anzahl VGA (D-Sub) Anschlüsse: 1
Anzahl HDMI-Anschlüsse: 1
HDMI-Version: 2.1
Anzahl DisplayPort Anschlüsse: 1
DisplayPorts-Version: 1.4
Kopfhörerausgänge: 1
Line-in: Ja
Mikrofon-Eingang: Ja
WiFi-AP-Antennenbuchse: 1
Netzwerk
Ethernet/LAN: Ja
Ethernet Schnittstellen Typ: Gigabit Ethernet
WLAN: Ja
Top WLAN-Standard: Wi-Fi 5 (802.11ac)
WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth: Ja
Bluetooth-Version: 5.0
Merkmale
Motherboard Chipsatz: Intel H610
Audio Kanäle: 7.1 Kanäle
Komponente für: PC
Motherboardformfaktor: micro ATX
Motherboard Chipsatz Familie: Intel
Unterstützt Windows-Betriebssysteme: Windows 10 x64, Windows 11 x64
Erweiterungssteckplätze
PCI-Express x1 (Gen 3.x)-Anschlüsse: 1
PCI Express x16-Steckplätze (Gen 4.x): 1
Anzahl der M.2 (M)-Steckplätze: 2
BIOS
BIOS-Typ: UEFI AMI
BIOS-Speichergröße: 128 Mbit
Clear-CMOS-Taste: Ja
Verpackungsdaten
Verpackungsbreite: 270 mm
Verpackungstiefe: 263 mm
Verpackungshöhe: 51,5 mm
Paketgewicht: 1,07 kg
Gewicht und Abmessungen
Breite: 244 mm
Tiefe: 216 mm
Lieferumfang
Mitgelieferte Kabel: SATA
