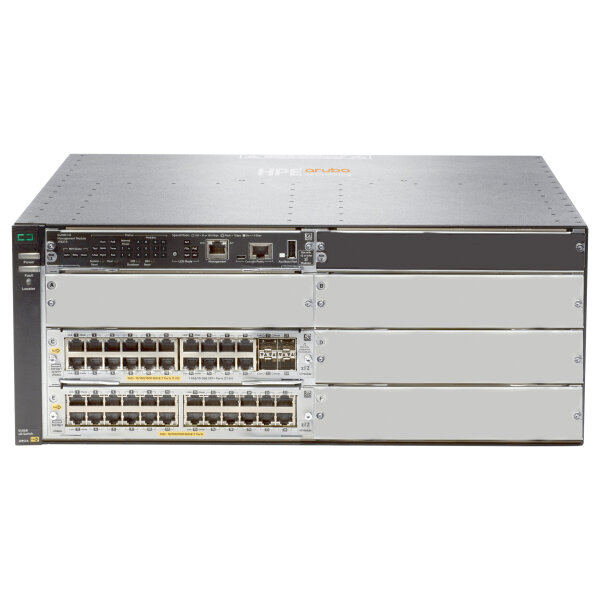

HP Enterprise 5406R 44GT PoE+/4SFP v3

Artikelnummer: JL003A
GTIN: 888182604373
Kategorie: Switching Hubs
Hersteller: HP

8.970,53 €

inkl. 19% USt. , zzgl.

Knapper Lagerbestand
Lieferzeit: 2 - 3 Werktage (DE - Ausland abweichend)

Stk

Beschreibung

HPE Aruba Networking 5406R 44GT PoE+ and 4 port SFP+ (No PSU) v3 zl2 Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 44. Full duplex. MAC address table: 64000 entries, Switching capacity: 960 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 4U

Management features
Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 44
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Compatible memory cards: SD
Network
Networking standards: IEEE 802.3, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u
10G support: Yes
Full duplex: Yes
IP routing: Yes
Routing entries: 10000
Auto MDI/MDI-X: Yes
Auto-sensing: Yes
VLAN support: Yes
Data transmission
Switching capacity: 960 Gbit/s
Throughput: 571.4 Mpps
MAC address table: 64000 entries
Latency (1 Gbps): 2.8 µs
Latency (10 Gbps): 1.8 µs
Jumbo frames support: Yes
Security
DHCP features: DHCP server
Access Control List (ACL): Yes
IGMP snooping: Yes
SSH/SSL support: Yes
Design
Rack mounting: Yes
Stackable: Yes
Form factor: 4U
Product colour: Grey
Performance
Built-in processor: Yes
Processor model: QorIQ P2020
Processor frequency: 1200 MHz
Memory type: DDR3-SDRAM
Internal memory: 4096 MB
Flash memory: 16 MB
Noise level: 44 dB
Power
Power supply included: No
AC input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Other features
Latency: 1000 Mb Latency: Memory and processor: Depend on the model: Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Arm 11 at 450 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1; Packet buffer size: 13.5 MB internal Arm 11 at 550 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM.
I/O ports: 44 RJ‑45 auto‑sensing 10/100/1000 PoE+ ports 4 open 10 GbE SFP+ transceiver 4 open module slots Supports a maximum of 144 auto‑sensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi‑Gigabit or 12 40 GbE ports, or a combination.
Performance management: HPE Aruba Networking Management Software HPE Aruba Networking Central HPE Intelligent Management Center Basic Software Platform (IMC) Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) Out-of-band management (serial RS-232C or micro USB) SNMP manager
Weight (imperial): 12.8 kg (28.1 lbs)
Dimensions (W x D x H) (imperial): 444.5 x 450.9 x 175.3 mm (17.5 x 17.8 x 6.9")
Operational conditions
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 15 - 95%
Storage relative humidity (H-H): 15 - 95%
Heat dissipation: 2450 BTU/h
Weight & dimensions
Width: 444.5 mm
Depth: 450.9 mm
Height: 175.3 mm
Weight: 12.8 kg
Logistics data
Harmonized System (HS) code: 85176990

Produkteigenschaft	Wert
Artikelgewicht:	16,33 kg
