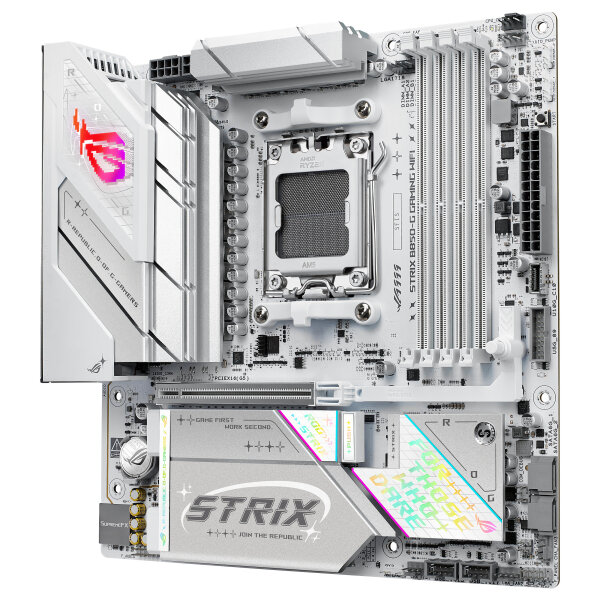

ASUS ROG STRIX B850-G GAMING WIFI. Prozessorhersteller: AMD, Prozessorsockel: Sockel AM5, Kompatible Prozessoren: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Unterstützte Arbeitsspeicher: DDR5-SDRAM, RAM-Speicher maximal: 256 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, Unterstützte Speicherlaufwerke: HDD & SSD, RAID Level: 0, 1, 5, 10. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet, Top WLAN-Standard: Wi-Fi 7 (802.11be), WLAN-Standards: Wi-Fi 7 (802.11be). Komponente für: PC, Motherboardformfaktor: micro ATX, Motherboard Chipsatz Familie: AMD
Prozessor
Prozessorhersteller: AMD
Prozessorsockel: Sockel AM5
Kompatible Prozessoren: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Speicher
Unterstützte Arbeitsspeicher: DDR5-SDRAM
Anzahl der Speichersteckplätze: 4
Arbeitsspeicher Typ: DIMM
Speicherkanäle: Zweikanalig
ECC-Kompatibilität: ECC & Nicht-ECC
Unterstützte Speichertaktrate (max.): 8000 MHz
RAM-Speicher maximal: 256 GB
Unbuffered Speicher: Ja
Speicher-Controller
Unterstützte Speicherlaufwerke: HDD & SSD
Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III
Maximale unterstützte Anzahl der HDD: 2
Anzahl der unterstützten Speicherlaufwerke: 6
RAID-Unterstützung: Ja
RAID Level: 0, 1, 5, 10
Grafik
Parallele Verarbeitungstechnologie: Nicht unterstützt
Interne E/A-Anschlüsse
Anzahl USB 2.0 Schnittstellen: 2
USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: 1
USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse: 1
SATA III Anschlüsse: 2
Front Panel Audiostecker: Ja
Frontpanel-Stecker: Ja
ATX Stromstecker (24-pol.): Ja
CPU Ventilatorstecker: Ja
Anzahl der CPU-Lüfteranschlüsse: 1
Zahl der Chassisventilatorstecker: 3
Chassis Intrusion Stecker: Ja
EPS Stromstecker (8-pin): Ja
12-V-Stromanschluss: Ja
E/A-Anschlüsse auf der Rückseite
Anzahl USB 2.0 Anschlüsse: 2
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 4
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: 2
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C: 1
USB 3.2 Gen 2x2 Typ-C Anzahl Anschlüsse: 1
Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
Anzahl HDMI-Anschlüsse: 1
Anzahl DisplayPort Anschlüsse: 1
Mikrofon-Eingang: Ja
S/PDIF-Ausgang: Ja
WiFi-AP-Antennenbuchse: 2
Netzwerk
Ethernet/LAN: Ja
Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet
WLAN: Ja
Top WLAN-Standard: Wi-Fi 7 (802.11be)
WLAN-Standards: Wi-Fi 7 (802.11be)
Bluetooth: Ja
Bluetooth-Version: 5.4
Merkmale
Motherboard Chipsatz: AMD B850
Audio Kanäle: 7.1 Kanäle
Produktfarbe: Weiß
Komponente für: PC
Motherboardformfaktor: micro ATX
Motherboard Chipsatz Familie: AMD
Unterstützt Windows-Betriebssysteme: Windows 11
Erweiterungssteckplätze
PCI Express x16-Steckplätze (Gen 5.x): 1
Anzahl der M.2 (M)-Steckplätze: 4
BIOS
BIOS-Typ: UEFI AMI
BIOS-Speichergröße: 256 Mbit
Clear-CMOS-Taste: Ja
Verpackungsdaten
Verpackungsbreite: 285 mm
Verpackungstiefe: 277 mm
Verpackungshöhe: 72,5 mm
Gewicht und Abmessungen
Breite: 244 mm
Tiefe: 244 mm
Lieferumfang
Antenne enthalten: Ja
Sonstige Funktionen
Audioausgang: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Spezielle Eigenschaften: Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4) on the underside of the board
2 x SATA 6Gb/s ports
*Specifications vary by CPU types.
Duplex Scan-Geschwindigkeit (Farbe): 4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Grafischer Ausgang: 1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
