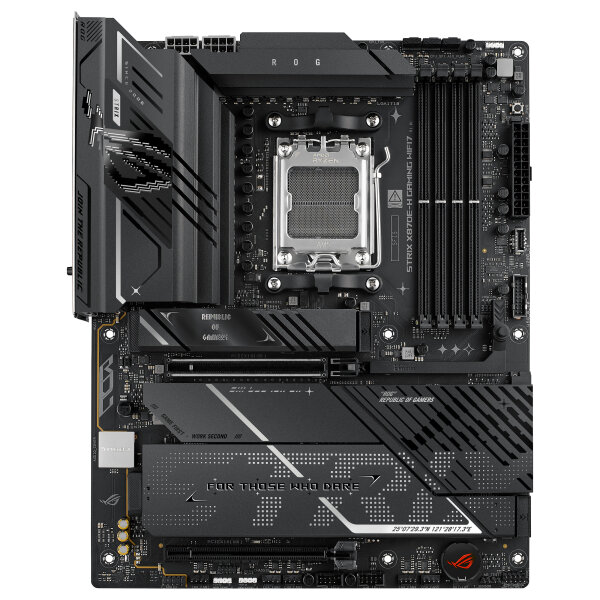

ASUS ROG STRIX X870E-H GAMING WIFI7. Prozessorhersteller: AMD, Prozessorsockel: Sockel AM5, Kompatible Prozessoren: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Unterstützte Arbeitsspeicher: DDR5-SDRAM, RAM-Speicher maximal: 256 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, Unterstützte Speicherlaufwerke: HDD & SSD, RAID Level: 0, 1, 10, 5. Ethernet Schnittstellen Typ: 5 Gigabit Ethernet, Top WLAN-Standard: Wi-Fi 7 (802.11be), WLAN-Standards: Wi-Fi 7 (802.11be). Komponente für: PC, Motherboardformfaktor: ATX, Motherboard Chipsatz Familie: AMD
Prozessor
Prozessorhersteller: AMD
Prozessorsockel: Sockel AM5
Kompatible Prozessoren: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Unterstützte Prozessorsteckplätze: Sockel AM5
Speicher
Unterstützte Arbeitsspeicher: DDR5-SDRAM
Anzahl der Speichersteckplätze: 4
Arbeitsspeicher Typ: DIMM
Speicherkanäle: Zweikanalig
ECC-Kompatibilität: Nicht-ECC
RAM-Speicher maximal: 256 GB
Unbuffered Speicher: Ja
Speicher-Controller
Unterstützte Speicherlaufwerke: HDD & SSD
Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III
Maximale unterstützte Anzahl der HDD: 4
Anzahl der unterstützten Speicherlaufwerke: 8
RAID-Unterstützung: Ja
RAID Level: 0, 1, 10, 5
Grafik
Parallele Verarbeitungstechnologie: Nicht unterstützt
Eingebaute Grafikadapter: Nein
Interne E/A-Anschlüsse
Anzahl USB 2.0 Schnittstellen: 2
USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: 1
USB 3.2 Gen 2x2-Anschlüsse: 1
SATA III Anschlüsse: 4
Front Panel Audiostecker: Ja
Frontpanel-Stecker: Ja
ATX Stromstecker (24-pol.): Ja
CPU Ventilatorstecker: Ja
Zahl der Chassisventilatorstecker: 5
Chassis Intrusion Stecker: Ja
EPS Stromstecker (8-pin): Ja
12-V-Stromanschluss: Ja
Anzahl der Temperatursensor-Header: 1
RGB-LED-Stiftleiste: Ja
Anzahl der RGB-LED-Stiftleisten: 3
E/A-Anschlüsse auf der Rückseite
Anzahl USB 2.0 Anschlüsse: 2
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 6
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: 3
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C: 1
Anzahl USB4 Gen 3×2-Ports: 2
Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
Anzahl HDMI-Anschlüsse: 1
Mikrofon-Eingang: Ja
S/PDIF-Ausgang: Ja
WiFi-AP-Antennenbuchse: 1
Netzwerk
Ethernet/LAN: Ja
Ethernet Schnittstellen Typ: 5 Gigabit Ethernet
WLAN: Ja
Top WLAN-Standard: Wi-Fi 7 (802.11be)
WLAN-Standards: Wi-Fi 7 (802.11be)
Bluetooth: Ja
Bluetooth-Version: 5.4
Merkmale
Motherboard Chipsatz: AMD X870E
Audio-Chip: Realtek ALC1220P
Audio Kanäle: 7.1 Kanäle
Produktfarbe: Schwarz
Komponente für: PC
Motherboardformfaktor: ATX
Motherboard Chipsatz Familie: AMD
Unterstützt Windows-Betriebssysteme: Windows 11
Erweiterungssteckplätze
PCI Express x16-Steckplätze (Gen 4.x): 1
PCI Express x16-Steckplätze (Gen 5.x): 1
Anzahl der M.2 (M)-Steckplätze: 4
1. M.2 größte Schlüsselgröße: 2280
1. M.2 höchste PCI Express-Generation: 5.0
2. M.2 größte Schlüsselgröße: 22110
2. M.2 höchste PCI Express-Generation: 5.0
3. M.2 größte Schlüsselgröße: 2280
3. M.2 höchste PCI Express-Generation: 4.0
4. M.2 größte Schlüsselgröße: 2280
4. M.2 höchste PCI Express-Generation: 4.0
BIOS
BIOS-Typ: UEFI AMI
BIOS-Speichergröße: 256 Mbit
Verpackungsdaten
Verpackungsbreite: 353 mm
Verpackungstiefe: 273 mm
Verpackungshöhe: 68 mm
Paketgewicht: 2,07 kg
Gewicht und Abmessungen
Breite: 305 mm
Tiefe: 244 mm
Lieferumfang
Mitgelieferte Kabel: SATA
Antenne enthalten: Ja
Sonstige Funktionen
Audioausgang: Realtek ALC1220P 7.1 Surround Sound
High Definition Audio CODEC*
- Impedance sense for front and rear
headphone outputs
- Internal audio Amplifier to enhance the
highest quality sound for headphone and speakers
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz
playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does
not support spatial audio. If you wish to use spatial audio, make sure to
connect your audio output device to the audio jack on the front panel of your
chassis or use a USB interface audio device.
Spezielle Eigenschaften: Supports 4 x M.2 slots and 4 x SATA 6Gb/s
ports
AMD Ryzen™ 9000 & 7000 Series Desktop
Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110
(supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not
supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* M.2_2 shares bandwidth with PCIEX16(G5).
When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
** M.2_2 will be disabled when using AMD
Ryzen™ 8000 Series Desktop Processors.
Duplex Scan-Geschwindigkeit (Farbe): 4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™
9000 & 8000 & 7000 Series Processors
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO™)
Supports DIMM Fit / DIMM Fit Pro
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate
(speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list
under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Adjustments will be made based on the specifications of mass-produced memory
products available on the market.
** Non-ECC, un-buffered DDR5 memory
supports On-Die ECC function.
Grafischer Ausgang: 1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB
Type-C® display outputs***
* Graphics specifications may vary between
CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI
2.1.
*** Supports max. 4K@60Hz as specified in
DisplayPort 1.4a
**** VGA resolution support depends on
processors' or graphic cards' resolution.
