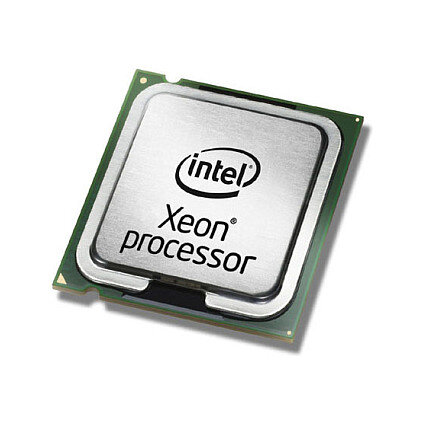

Intel Xeon E5-2623V4. Prozessorfamilie: Intel® Xeon® E5 v4, Prozessorsockel: LGA 2011-v3, Prozessor Lithografie: 14 nm. Speicherkanäle: Vierfach-Kanal, Maximaler interner Speicher, vom Prozessor unterstützt: 1,53 TB, Speichertypen, vom Prozessor unterstützt: DDR4-SDRAM. Marktsegment: Server, Unterstützte Befehlssätze: AVX 2.0, Skalierbarkeit: 2S. Intel® Turbo Boost Technology 2.0 frequency: 3,2 GHz. Prozessor-Paketgröße: 45mm x 52.5mm
Prozessor
Prozessorhersteller: Intel
Prozessor: E5-2623V4
Grundfrequenz des Prozessors: 2,6 GHz
Prozessorfamilie: Intel® Xeon® E5 v4
Anzahl Prozessorkerne: 4
Prozessorsockel: LGA 2011-v3
Komponente für: Server/Arbeitsstation
Prozessor Lithografie: 14 nm
Prozessor-Serien: Intel Xeon E5-2600 v4
Prozessor-Threads: 8
Systembus-Rate: 8 GT/s
Prozessorbetriebsmodi: 64-Bit
Prozessor Boost-Frequenz: 3,2 GHz
Prozessor-Cache: 10 MB
Prozessor Cache Typ: Smart Cache
Thermal Design Power (TDP): 85 W
Verpackungsart: Einschub
Kühler enthalten: Nein
VID Spannungsbereich: 0 - 0 V
Stepping: R0
Bus Typ: QPI
Anzahl der QPI links: 2
Durch den Prozessor (max) unterstützte Speicherbandbreite: 68,3 GB/s
Prozessor Codename: Broadwell
Prozessor-Code: SR2PJ
ARK Prozessorerkennung: 92980
Speicher
Maximaler interner Speicher, vom Prozessor unterstützt: 1,53 TB
Speichertypen, vom Prozessor unterstützt: DDR4-SDRAM
Speichertaktraten, vom Prozessor unterstützt: 1600,1866,2133 MHz
Speicherkanäle: Vierfach-Kanal
ECC: Ja
Grafik
Eingebaute Grafikadapter: Nein
Merkmale
Execute Disable Bit: Ja
Leerlauf Zustände: Ja
Thermal-Überwachungstechnologien: Ja
Marktsegment: Server
Maximale Anzahl der PCI-Express-Lanes: 40
PCI-Express-Slots-Version: 3.0
Unterstützte Befehlssätze: AVX 2.0
Skalierbarkeit: 2S
Physical Address Extension (PAE): Ja
CPU Konfiguration (max): 2
Eingebettete Optionen verfügbar: Nein
Physical Address Extension (PAE): 46 Bit
PCI Express CEM Revision: 3.0
Exportkontroll-Klassifizierungsnummer (ECCN): 5A992C
Warenklassifizierungssystem zur automatisierten Nachverfolgung (CCATS): G077159
Prozessor Besonderheiten
Intel® Hyper-Threading-Technik (Intel® HT Technology): Ja
Intel® Identity-Protection-Technologie (Intel® IPT): Nein
Intel® Turbo-Boost-Technologie: 2.0
Intel® Flex Memory Access: Nein
Intel® AES New Instructions (Intel® AES-NI): Ja
Verbesserte Intel SpeedStep Technologie: Ja
Intel® Trusted-Execution-Technik: Ja
Intel® Turbo Boost Technology 2.0 frequency: 3,2 GHz
Intel® Transactional Synchronization Extensions: Ja
Intel® Enhanced Halt State: Ja
Intel® VT-x mit Extended Page Tables (EPT): Ja
Intel® Demand Based Switching: Ja
Intel® Sicherer Schlüssel: Ja
Intel® TSX-NI: Ja
Intel® OS Guard: Ja
Intel® 64: Ja
Intel® Identity Protection Technologieversion: 0,00
Intel® Secure Key Technologieversion: 1,00
Intel® Virtualization Technologie (VT-X): Ja
Intel® Virtualisierungstechnik für direkte I/O (VT-d): Ja
Intel® TSX-NI-Version: 1,00
Konfliktloser-Prozessor: Ja
Intel® vPro™ Platform Eligibility: Ja
Betriebsbedingungen
Tcase: 73 °C
Technische Details
Bus-Bandbreite: 8
Bus-Typ-Einheiten: GT/s
Startdatum: Q1'16
Prozessor Cache: 10240 KB
Produkttyp: Processor
Status: Launched
Markenname Prozessor: Intel Xeon
Unterstützte Arbeitsspeicher: DDR4-SDRAM
Letzte Änderung: 63903513
Produktfamilie: Intel Xeon Processor E5 v4 Family
Busgeschwindigkeit: 8 GT/s
Instandhaltungsstatus: End of Servicing Updates
Datum des Endes der Wartungsaktualisierung: Thursday, June 30, 2022
Logistikdaten
Warentarifnummer (HS): 85423119
Gewicht und Abmessungen
Prozessor-Paketgröße: 45mm x 52.5mm
Sonstige Funktionen
Kompatibilität: Intel Server System R1208WT2GSRIntel Server System R1208WTTGSRIntel Server System R1304WT2GSRIntel Server System R1304WTTGSRIntel Server System R2208WTTYSRIntel Server System R2208WT2YSRIntel Server System R2208WTTYC1RIntel Server System R2308WTTYSRIntel Server System R2312WTTYSRIntel Server System R2224WTTYSRIntel Server Board S2600CW2RIntel Server Board S2600CW2SRIntel Server Board S2600CWTRIntel Server Board S2600CWTSRIntel Server Board S2600KPRIntel Server Board S2600KPFRIntel Server Board S2600KPTRIntel Server Board S2600TPRIntel Server Board S2600TPFRIntel Server Board S2600WTTRIntel Server Board S2600WT2RIntel Server Board S2600WTTS1RIntel Compute Module HNS2600KPFRIntel Compute Module HNS2600KPRIntel Compute Module HNS2600TP24RIntel Compute Module HNS2600TPFRIntel Compute Module HNS2600TPRIntel Compute Module HNS2600TP24SR
RAM-Speicher maximal: 1,5 TB
RAM-Speicher maximal: 1572864 MB
